Different types of Handles for uPVC / composite doors multi-point handles

Lock Guy is a professional locksmith operating in Essex. A good locksmith will be familiar with all types of handles, the problems that can arise and will be able to advise on and improve the level of security that the handle offers. This article focuses specifically on handles for uPVC / composite doors with multi-point locking mechanisms.

Common Issues

There are various problems that can occur with the handles that are found on uPVC / composite doors. The following list represents the most common issues and the potential solutions that might be available.

Problem	Probable Solutions
Handle is wobbly / loose	Try tightening the screws on the handle. Or it might need a replacement handle. Sometimes the screws are not the right length and need to be changed or cut down.
Handle squeaks	Try lubricating the handles. You might need to remove the handles to access the squeaky part.
Handle is floppy and does not spring back	It may be that the spring has broken. Often the springs can be replaced. Or it might need a replacement handle if the spring is part of an integrated assembly.

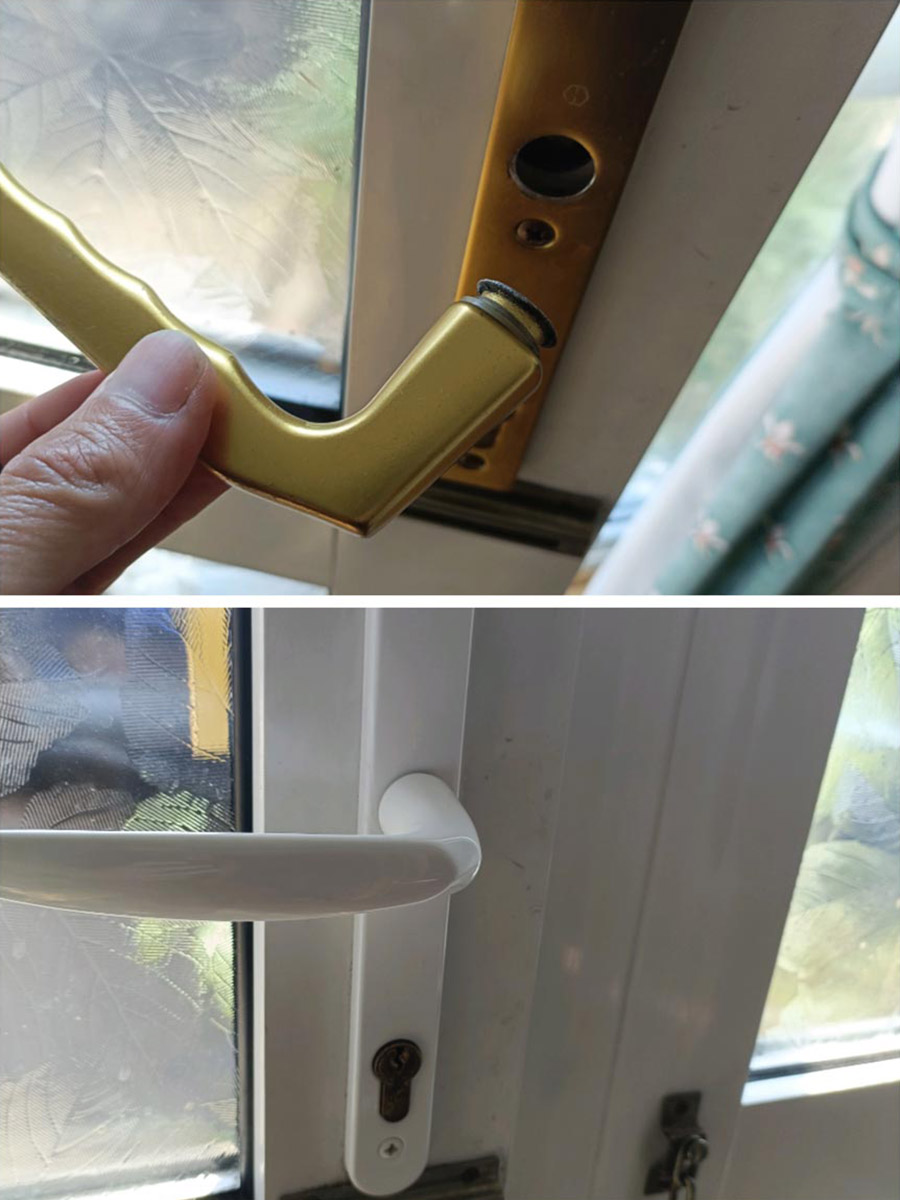

Handle has broken off	This will need a replacement handle.
Handle is old, worn and looks ugly	Sometimes a good clean is all that is needed. However, with time, use and exposure to the elements, it is likely that this will need a new replacement handle.
Screws are on the outside, not on the inside (fitted incorrectly)	This is a security risk. If you have this, simply unscrew the handles, rotate the handles 180 degrees on each side and screw back together from the inside of the door.
Handle is stiff to operate	This may be related to the handle, but is more likely to be linked to the locking mechanism gearbox that may need to be serviced or replaced by a locksmith.
Handle does not operate the locking mechanism	This may be related to the handle and the spindle may not be engaged properly in the locking mechanism. However, it is more likely to be linked to the locking mechanism gearbox that may need to be serviced or replaced by a locksmith.
Handle is damaged (e.g. during a burglary attempt)	This will need a replacement handle to ensure that the integrity (mechanical strength) of the handle is not compromised.

Tips on Replacing a Handle

It is recommended to get a locksmith to supply and fit a new handle for multi-point doors to make sure it is done correctly and your property is secure. However, if you want to attempt to replace the handles yourself, then here are a few tips on selecting the right handle:

Be careful to make sure that you measure the key dimensions accurately. (See this article on how to measure a door handle.)
PZ (distance between centre of keyhole to centre of spindle). Check this dimension on both sides of the door as sometimes they can be different.
Screw centres (distance between screws)
Distance from screws to spindle
Try to purchase a replacement with a larger footprint than the existing one to make sure it covers any marks that may be visible after the old handles have been removed.
There are some adjustable handles available on the market that may avoid the need of drilling additional holes in your door.

Think about whether you want a lever or a pad on the outside (it is just down to personal preference).
Try to utilise the existing spindle(s) to ensure that the operation is not affected, e.g. Check if it is a split spindle or if it has offset handles (different height of handle on inside compared to handle on outside).
Think about the colour/finish and design to make sure it fits in with the overall look of the door.

High Security Handles

uPVC / Composite Door Multi-Point Handles do not all have the same level of security. Having a high security handle will improve the security to your home.

Features of high security handles include very strong material, a shape that is difficult to attack and some kind of cylinder shield.

There are a number of options available on the market, so be sure to look out for the TS007 2 star rating which demonstrates that it has been through the necessary testing to demonstrate it is classified as a high security handle.

Lock Guy recommends the Ultion anti-break-in handles.

Fix handle problems before they become bigger issues

It is important to check and correct any problems related to handles before it becomes a bigger more urgent issue. If your handle suddenly fails, you might find yourself locked out and unable to operate your door. If a problem is noticed, then it will only get worse over time, so it is better to address it as soon as possible. If you are unsure, then contact your local reputable locksmith.

A nice handle is not only functional, but it can also affect the overall look and appearance as all visitors will notice and use the handle. There are some very attractive designs available that can improve the overall image of a door and a property.

Even with a good quality, high security handle, one still needs a good lock and a good locking mechanism to ensure that the overall security of the door is as robust as possible. A high security handle with a poor quality budget lock will not be sufficient.

I hope this article on handles for uPVC / Composite Doors has been useful to you.

For further advice, or for any handle fixes or replacements in Essex, contact Lock Guy.
